urrent location：Home > product details

LED Wall lamp-24W-CG-XQ-B024

Model：CG-XQ-B024

Power：24w

Size：W60*H70（115）*L1000mm

Projection distance：2.5-4M

Luminous color：Red. Green. Blue. Yellow. Warm white. White, cold white. Colorful

Lamp color：Silvery white

Shell work：Aluminum alloy

Light chip：Imported high-quality high-power lamp bead

Product characteristics：The lamp body is made of high quality aluminum alloy manufacture, the cooling efficiency is high; and the use of design of strong air convection, ensuring the cooling effect; the lamp body adopts the combination of precision abrasive casting close, effectively prevent impurities intrusion; the power supply adopts intelligent control chip, to achieve the voltage and current stabilizing effect, ensure the endurance life of lamps and lanterns, is the first choice for a new era of new environment-friendly energy-saving light source!

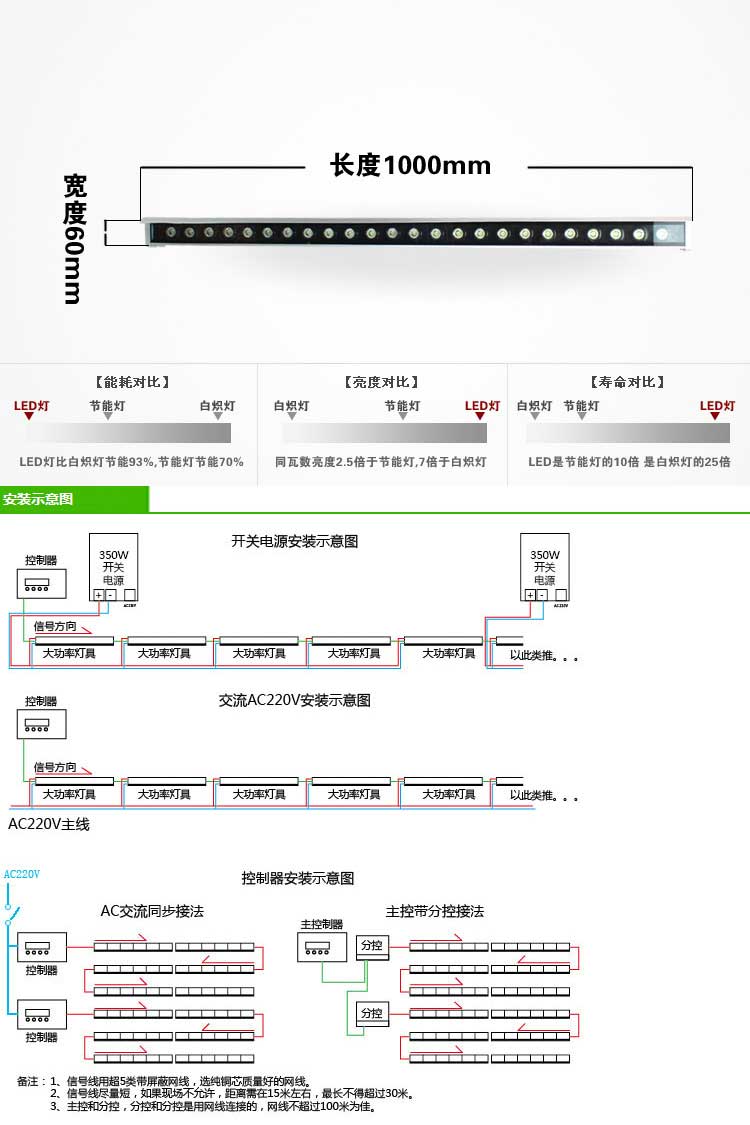

Dimension sketch map

Parameter description

產品型號 Product Model	CG-XQ-B024
輸入電源 Input Voltage	AC220V
電源頻率 Freqency Range	50HZ-60HZ
功率因數 Power Factor	＞8.8
LED驅動方式 LED Driving Mode	內置防水電源
LED壽命 LED Life	50000H
LED顏色 LED Color	白光、冷白、暖白、綠、藍、紅、黃、七彩
LED數量 LED Quantity	24pcs
配光方式 Light Design	LED+透鏡（Lens)
光束角 Beam Angle	15°45° 60°120°可選
LED功率 LED Power	24W
LED結點溫升 LED Node Temperature	＜65°C
工作溫度 Working Temperature	-40°C- +55°C
防護等級 IP Grade	IP66
外殼材質 Shell Material	鋼化玻璃、散熱鋁
電源連接線 Power Cables	棕Brown 藍Blue 地線GND
燈具尺寸 SIZE	W60H70（115）L1000mm
燈具照度 LM	2400LM
產品認證 Product Certification	CE

product details

產品使用場合:
單體建筑、歷史建筑群外墻照明。大樓內光外透照明、室內局部照明。
綠化景觀照明、廣告牌照明。醫療、文化等專門設施照明;酒吧、舞廳等
娛樂場所氣氛照明等

產品特點:
外殼采用優質鋁材壓鑄而成，散熱性能優越，光源采用超高亮度的燈珠制作,
亮度極高,并且使用更穩定,內置恒流驅動電源，確保燈具性能穩定。
